S160 Platform Feature
Time:2014-11-26

S160 Platform Specify Info of Hardware and System

Type

Name

Description

main CPU

RK3188



CPU main frequency

Frequency1.6GHZ

True 4-Core Processors, Increase performance markedly

ROM

DDR 1G

standard ROM

Flash/harddisc capacitance

INAND FLASH 16G

Very large memory

resolution

1024*600 HD screen

7” above(including 7”)

color

65000 color

colorful display

display screen

Mirror surface high definition and high transmittance LCD

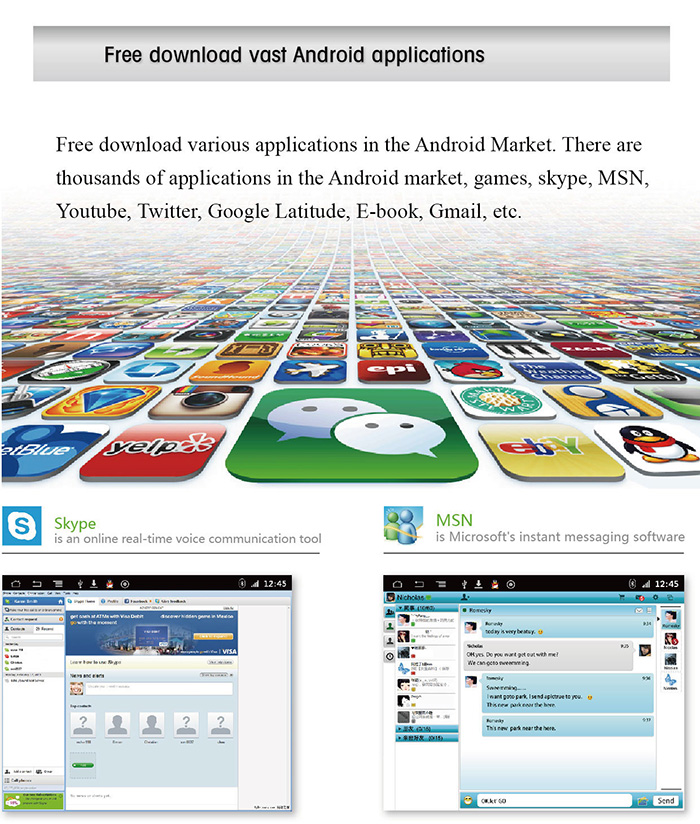

OS

ANDROID 4.4.4

Fast response, stable system

touch panel

Capacitive multi touch screen

Display

Support high-definition screen, support  LVDS input

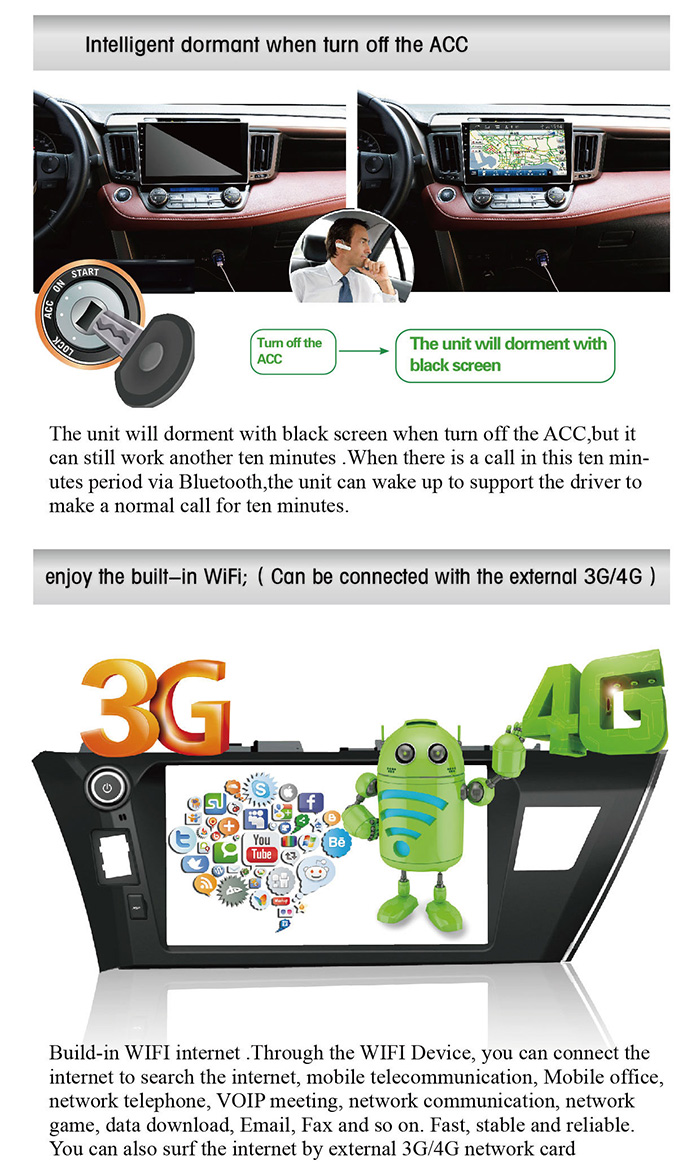

Network

Connect external 3G/4G network card)

GPS receiver

frequency 1575.42MHZ C/A CODE

protocol standardNMEA-0183 V3.01

channel – 66 channels for searching satellite, 22 channels for tracking.

tracking sense -164dBm

locate3m 2D RMS

receivermoduleG591C GPS1613

BT module

working frequency2.402GHZ-2.480GHZ ISM Band

MIC sense:-42dB

BC6 Bluetooth module BT MDC732

Radio

  Radio module 7706 IC

Video decoder

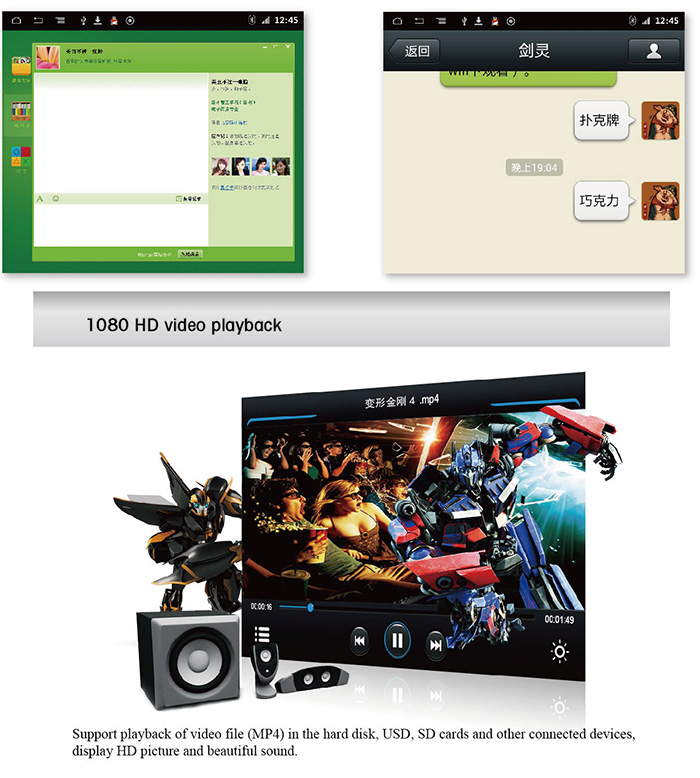

All format decoding,support 1080P

Audio Sounds(import)

America TDA 7415CB(Better sounds)

Amplifier IC(import)

Amplifier IC (TDA 7851L); High power, low dissipation

DVD Mechanism

Specification

LE CHI DVD Mechanism

Optical head

Sanyo 860C

Remark:

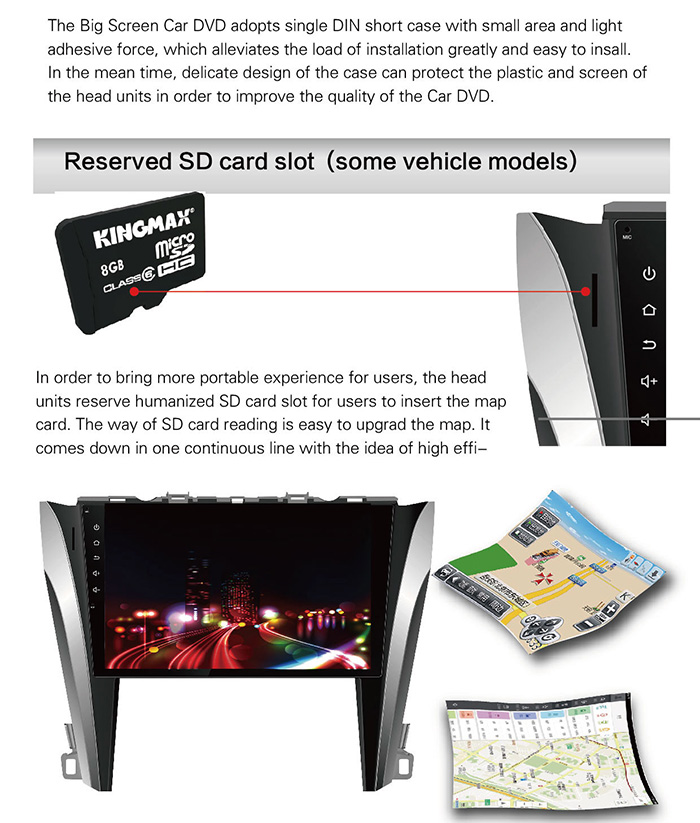

1, System updates: no other equipment just insert the SD card can upgrade system, interface, MCU, Bluetooth, canbus program and etc;

2.Bigscreen machine have no Traverse.
